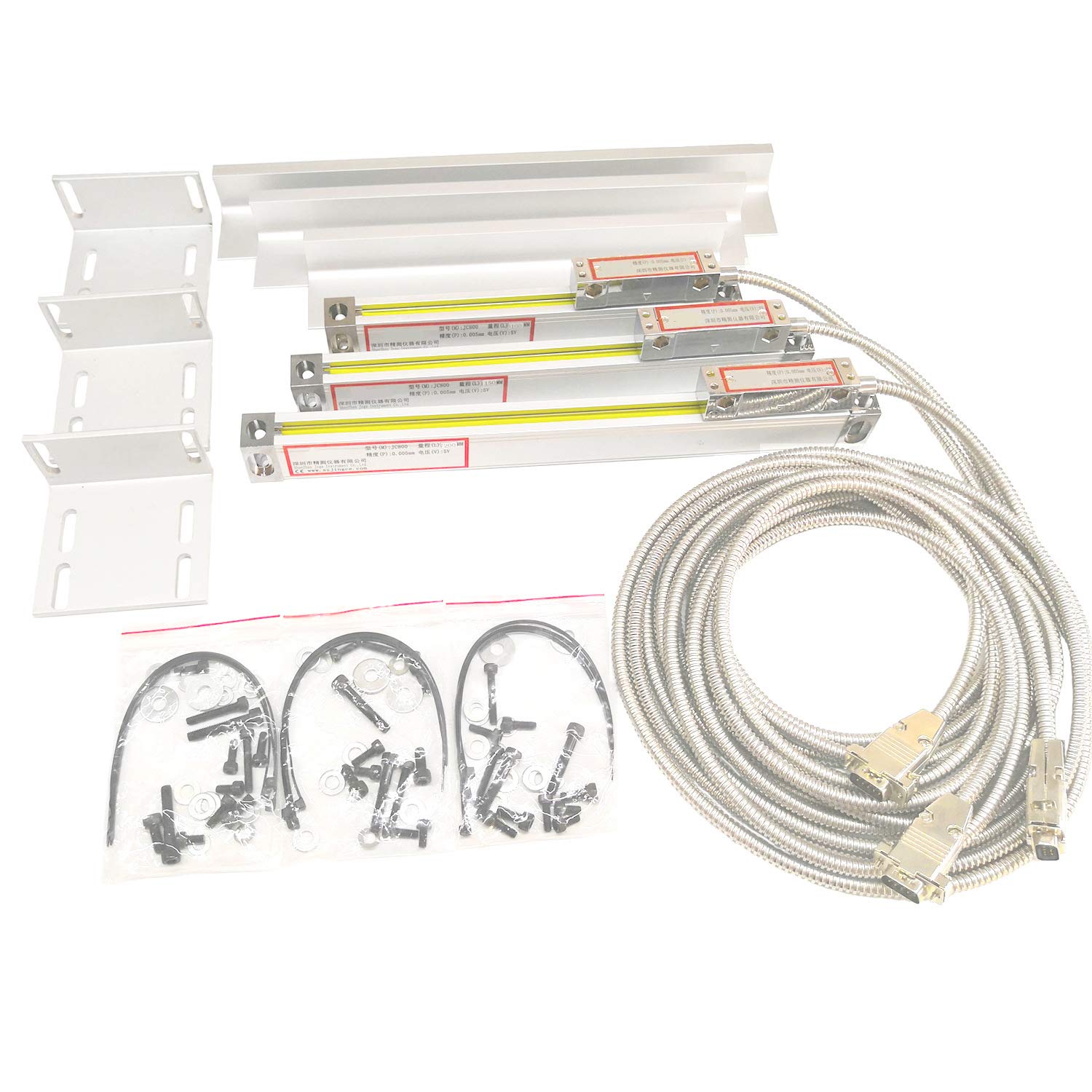

iMeshbean 2/3 Axis Digital Readout and TTL Precision Linear Glass Scale DRO Encoder for Milling Lathe (200mm Travel Length Scale ONLY(8''))

Basic Information :Supply Voltage range : AC 80V~260V; 50~60Hz，UK, US ,EU Plug availablePower consumption: 15VAOperating temperature: 0~45 degree centigradeStorage temperature: -30~70 degree centigradeRelative humidity: Less than 90%Readout allowable input signal: TTL square waveAllowable input signal frequebcy: Less than 5M HzMax resolution of digital display length: 5µm (0.005mm/0.0002")Min resolution of digital display angle :0.0001/pulseDigital Readout Dimensions:295*170*65mm (11.6"*6.7"*2.56")Linear Scale Interface: DB9(RS232)Display Advantage: Having a good capacity of resisting disturbance,durable keyboard,easy to changeSDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering PCD functionR functionSmooth R functionThe simple R functionChambering (applicable to: Milling machine,Boring machine)Tool conpensation (for lathe)Machining of oblique planeAlso a calculator is equipped for more convenient usage Benefit :(1) Digital display to eliminate backlash and improve precision(2) Advanced trigonometric calculation so to accomplish a perfect project(3) 11.6”wide display to offer excellent long-distance viewing(4) Digital readout kit can avoid wasting weeks to check machine precision

• The digital readout(DRO) in GCS series, This kind of DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy.
• Resolution 5um , Accuracy ± 5um/ 0.0002";
• Have a good capacity of resisting disturbance,durable keyboard,easy to change;
• 【Important Note】:Scales Actual physical length is 5.5inch longer than travel length. Total length=travel length+5.55inch
• Note: Display&Scales Sold Separately,Pls Select the Size Options!
